Customizable ATEX Certificate Gas Injecting System for Fast and Accurate Refrigerant Charging at Production Line
-
강조하다
ATEX Certificate Gas Injecting System
,Customizable Gas Injecting System
-
조건새로운
-
적용 가능한 산업제조 공장
-
무게 (kg)300
-
전시실 위치아무 것도
-
비디오 출입 검사제공
-
기계 시험 보고사용할 수 없습니다
-
핵심 부품에 대한 보증1년
-
핵심 부품모터, 펌프
-
종류압축기
-
보증1년
-
판매 후 서비스 제공해외에 있는 기계 서비스용 엔지니어
-
결의0.1g
-
전압380V/50HZ
-
냉장료R22/R410A/R407C/R134A
-
모델 부정CM8600 R32 냉매 충전 시스템
-
정확성±0.5%
-
진공도5파~10파
-
충전 속도60~260g/초
-
적용에어컨, 정수기, 냉동고, 냉장고
-
항구상하이 닝보 톈진 청도
-
원래 장소진주, 중국
-
브랜드 이름CM
-
인증CE, ATEX
-
모델 번호CM8600
-
최소 주문 수량1 단위
-
가격$20,400.00/units 1-2 units
-
포장 세부 사항나무 케이스, CM8600 냉매 충전 기계용 팔레트
-
공급 능력50 유닛 / 유닛마다 달
Customizable ATEX Certificate Gas Injecting System for Fast and Accurate Refrigerant Charging at Production Line
Customizable ATEX Certificate Gas Injecting System for Fast and Accurate Refrigerant Charging at Production Line
| Attribute | Value |
|---|---|
| Condition | New |
| Applicable Industries | Manufacturing Plant |
| Weight (KG) | 300 |
| Showroom Location | None |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Not Available |
| Warranty of core components | 1 Year |
| Core Components | Motor, Pump |
| Type | COMPRESSOR |
| Warranty | 1 Year |
| After-sales Service Provided | Engineers available to service machinery overseas |
| Resolution | 0.1g |
| Voltage | 380V/50HZ |
| Refrigerant | R22/R410A/R407C/R134A |
| Model No | CM8600 R32 refrigerant charging system |
| Precision | ±0.5% |
| Vacuum degree | 5Pa~10Pa |
| Charging speed | 60~260g/s |
| Application | Air conditioner, water dispenser, freezer, refrigerator |
| Port | Shanghai Ningbo Tianjin Qingdao |
CM8600 Dual System Refrigerant Charging Machine for Refrigerator Assembly Line
The CM86 refrigerant charging machine is specially designed for fast speed refrigerant charging at production lines. It features high speed charging, high accuracy, and multiple functions. The machines are compatible with refrigerants of CFC, HFC, HC, etc. The machine can also be customized according to your special requirements.
Key Features
- Adopt CNC technology allowing data processing capability with accurate and easy operation
- Charging/filling liquid gas R134a, R22, R407C, R410A etc. (for R600a, R290, R32 can be customized)
- Siemens PLC and colorful touch screen control system
- High accuracy flow sensors provide precise data with resolution reaching 1~0.1g
- Wonfulay (our own brand) pneumatic booster ensures stable pressure and large charging quantity supply
- Continuous charging/filling quantity up to 99999g with charging rate of 60g~260g
- Automatic prompt function when refrigerant in the cylinder is low
- Adjustable vacuum time and inspection leak time according to requirements
- Wonfulay (our own brand) filling gun improves charging/filling speed
- Wonfulay (our own brand) high vacuum pump provides quick vacuum reaching 5~10Pa
- Includes vacuum, inspection leak, charging/filling, and refrigerant recovery functions
- Repeat filling accuracy ≤ ± 0.5%
- Easy to move

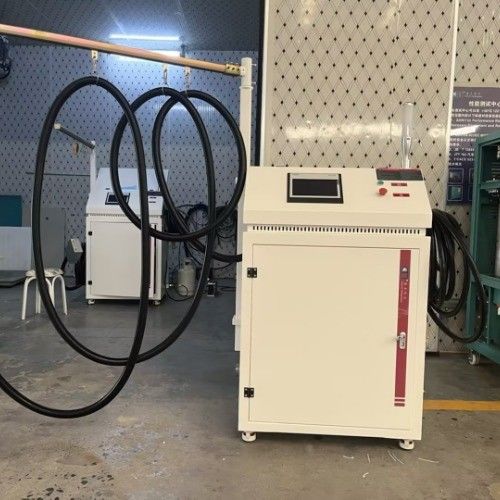

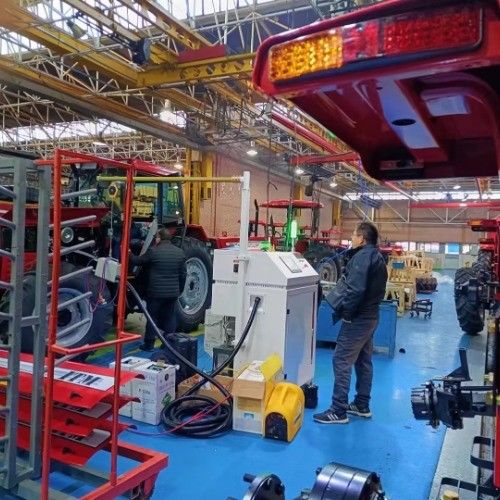

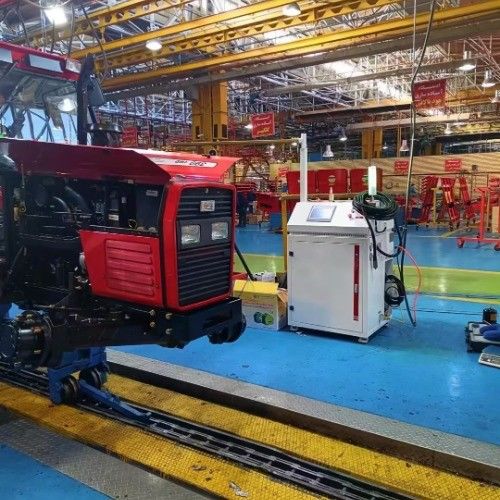

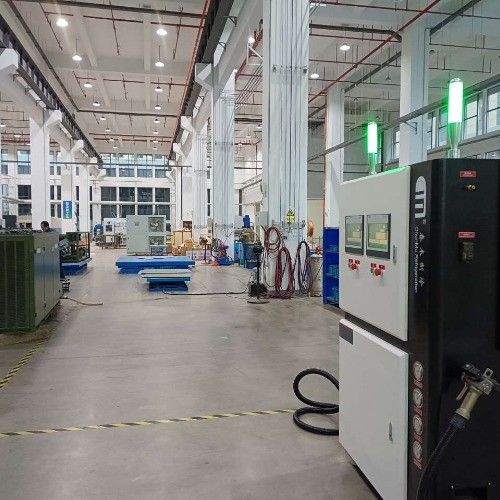

Product Images
