R134a R410a refrigerant charging machine
,Freon filling system for refrigerants
,refrigerant charging station with warranty
-
상태새로운
-
해당 산업제조 공장
-
체중 (kg)300
-
쇼룸 위치없음
-
비디오 발신 검사제공
-
기계 테스트 보고서사용할 수 없습니다
-
핵심 구성 요소의 보증1 년
-
핵심 구성 요소모터, 펌프
-
유형압축기
-
보증1 년
-
애프터 판매 서비스 제공해외 서비스 기계에 이용할 수있는 엔지니어
-
해결0.1g
-
전압380V/50Hz
-
냉각제R22/R410A/R407C/R134A
-
모델 번호CM8600 R32 냉매 충전 시스템
-
정도± 0.5%
-
진공 학위5PA ~ 10PA
-
충전 속도60 ~ 260g/s
-
신청에어컨, 물 디스펜서, 냉동고, 냉장고
-
포트상하이 Ningbo Tianjin Qingdao
-
원래 장소중국 장수
-
브랜드 이름CM
-
인증CE, ATEX
-
모델 번호CM8600
-
최소 주문 수량1 단위
-
가격$20,400.00/units 1-2 units
-
포장 세부 사항목재 케이스, CM8600 냉매 충전 충전 기계 용 팔레트
-
공급 능력한 달에 50 단위/단위
R134a R410a Refrigerant Charging Machine Gas Freon Filling System
Chunmu Refrigerator Production Line Refrigerant Filling Station
Product Specifications
| Attribute | Value |
|---|---|
| Condition | New |
| Applicable Industries | Manufacturing Plant |
| Weight (KG) | 300 |
| Video Outgoing-Inspection | Provided |
| Warranty of Core Components | 1 Year |
| Core Components | Motor, Pump |
| Type | COMPRESSOR |
| Warranty | 1 Year |
| After-sales Service | Engineers available to service machinery overseas |
| Resolution | 0.1g |
| Voltage | 380V/50HZ |
| Refrigerant Compatibility | R22/R410A/R407C/R134A |
| Model No | CM8600 R32 refrigerant charging system |
| Precision | ±0.5% |
| Vacuum Degree | 5Pa~10Pa |
| Charging Speed | 60~260g/s |
| Application | Air conditioner, water dispenser, freezer, refrigerator |
| Port | Shanghai Ningbo Tianjin Qingdao |
Product Overview
The CM8600 Dual System Refrigerant Charging Machine is specially designed for high-speed refrigerant charging in refrigerator assembly lines. This professional-grade equipment features exceptional charging speed, high accuracy, and multiple functions for industrial applications.
Key Specifications: Compatible with CFC, HFC, and HC refrigerants, this machine can be customized to meet specific production line requirements.
Key Features
- CNC technology enables precise data processing with accurate and easy operation
- Charging/filling capability for liquid gases including R134a, R22, R407C, R410A (customizable for R600a, R290, R32)
- Siemens PLC with colorful touch screen control system
- High-accuracy flow sensors provide resolution of 1~0.1g
- Wonfulay pneumatic booster ensures stable pressure and large charging quantity supply
- Continuous charging capacity up to 99999g with charging rate of 60g~260g
- Automatic prompt function when refrigerant in cylinder is low
- Adjustable vacuum time and inspection leak time
- Wonfulay filling gun improves charging/filling speed
- Wonfulay high vacuum pump achieves quick vacuum of 5~10Pa
- Multiple functions: vacuum, inspection leak, charging/filling, refrigerant recovery
- Repeat filling accuracy ≤ ± 0.5%
- Portable design for easy movement between workstations
Product Images

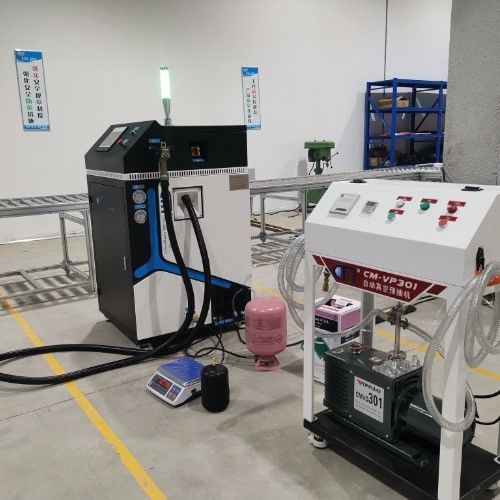

Front View

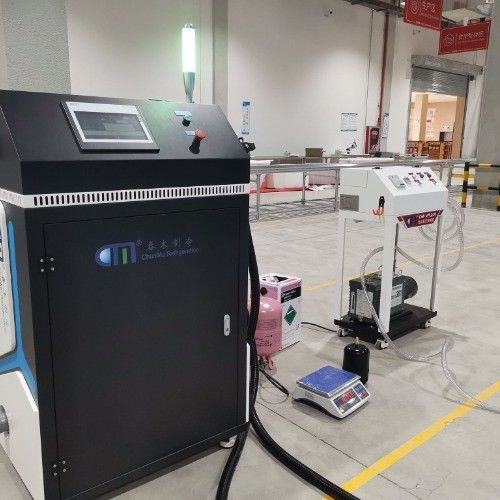

Control Panel

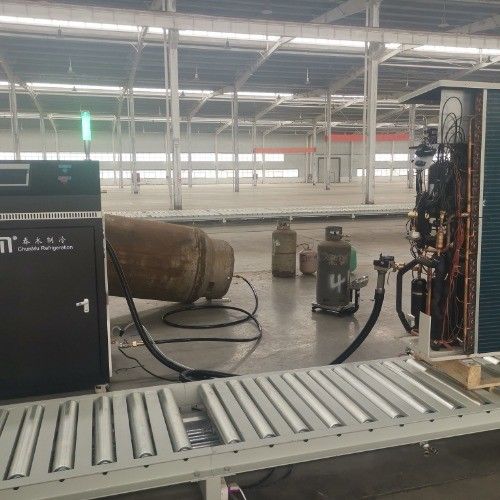

Side View

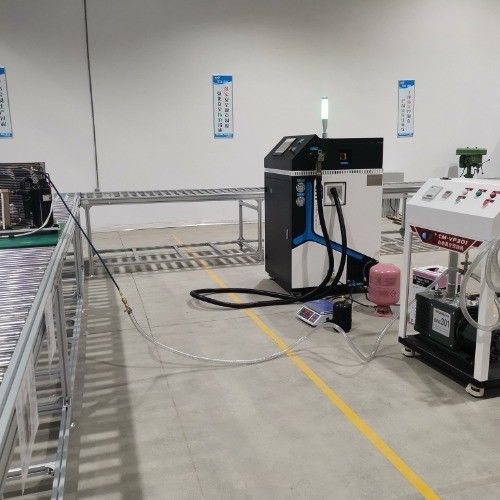

Components
Filling Interface
Internal Components
Pneumatic System
Vacuum Pump
